Part 1: Introduction

In the modern pickup truck accessories segment, the shift from manual to fully automated cargo protection has driven the need for highly integrated electronic solutions. For tonneau cover manufacturers, localized assembly plants, and international distributor networks, understanding the internal control architecture is critical to selecting a reliable supplier. Sourcing loose, unmatched electrical components often leads to system desynchronization, motor burnout, and high product return rates in the aftermarket.

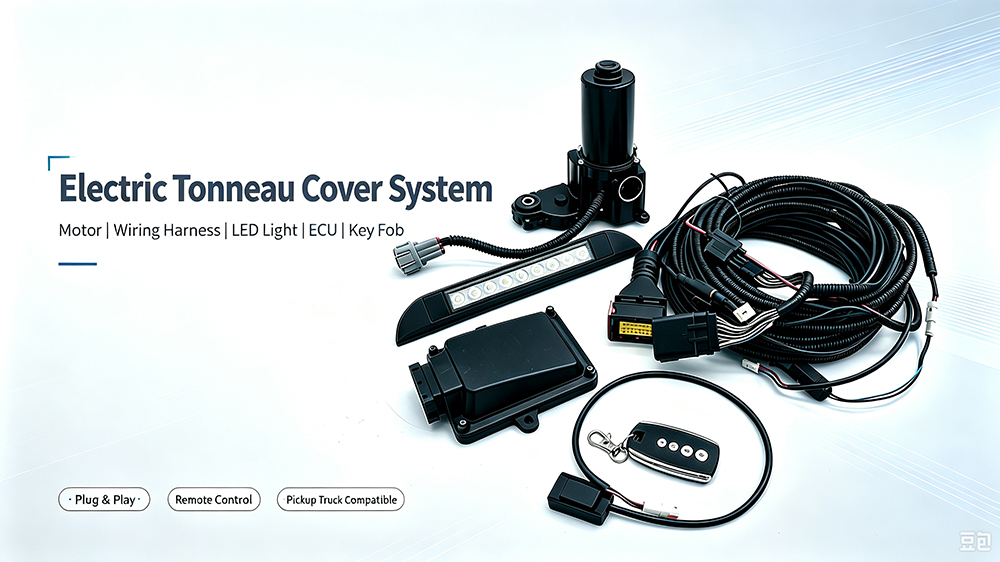

This comprehensive introduction breaks down the technical parameters of the core sub-assemblies inside our fully unified Automated Tonneau Cover Control System Kit. By analyzing the synergy between the central brain and mechanical muscle, volume buyers can evaluate the true performance standards required for modern fleet deployment.

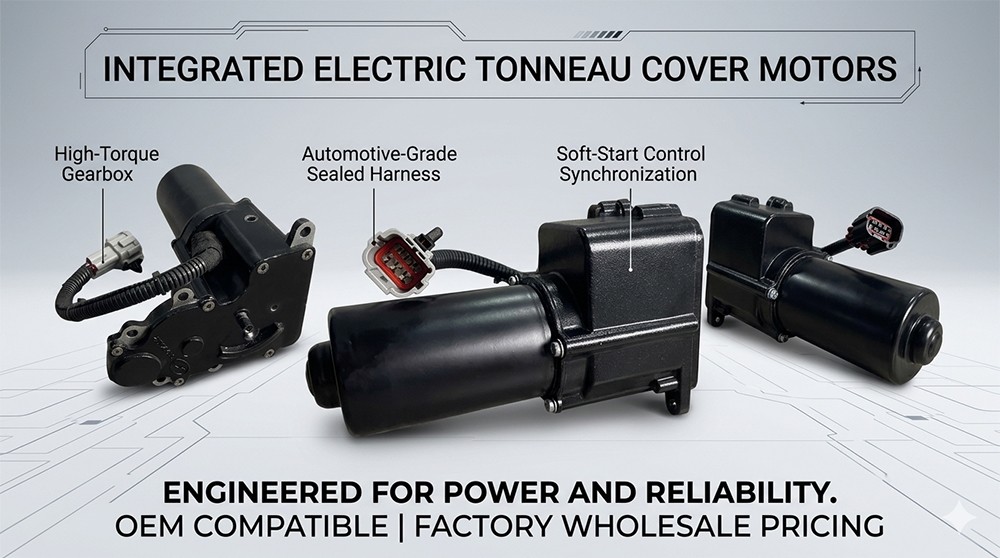

Part 2: Heavy-Duty 12V DC Drive Motor Unit

• The mechanical muscle of the automated system is built entirely around an ultra-compact, high-torque central drive unit:

• High Torque Density: Engineered to run on standard 12V DC pickup truck battery loops, this high-performance gear motor delivers consistent, smooth rotational force to haul heavy interlocking aluminum slats without lagging.

• Automated Mechanical Integration: Features a space-saving, anti-vibration cylindrical housing design that slips seamlessly into the roller shutter canister box, offering thousands of maintenance-free deployment and retraction loops.

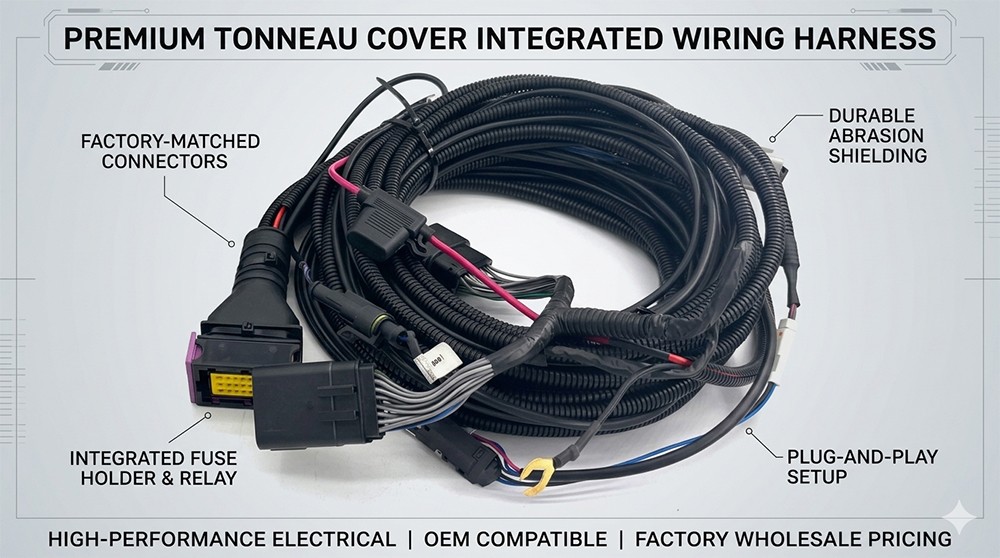

Part 3: OE-Style Plug-and-Play Waterproof Wiring Harness

Workshop labor cost is the defining metric for distributor profitability. Our heavy-duty wire loom eliminates complex electrical field work:

• Pre-Molded Connectors: Built with factory-style, automotive-grade multi-pin waterproof plugs that lock securely onto the vehicle fuse boxes or battery terminals.

• Braided Abrasion Shielding: The entire wiring harness is completely wrapped inside durable, industrial woven protective sleeves, preventing short-circuits caused by severe chassis vibrations, road debris scuffing, and chemical salt corrosion.

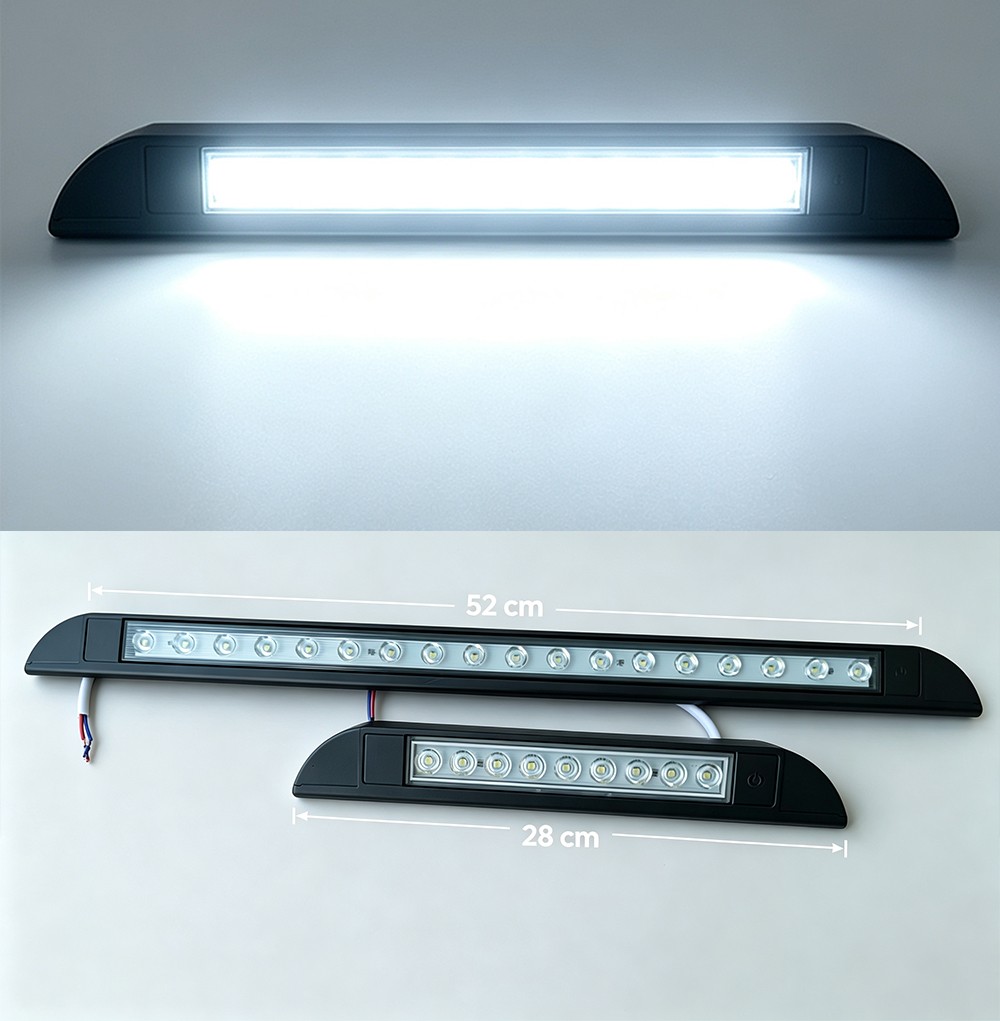

Part 4: Integrated Slimline LED Courtesy Light

Adding real-world commercial utility and consumer value to the truck bed space is a major selling point:

• High-Lumen Visibility: Features an integrated, low-profile linear LED courtesy strip designed to be mounted flush inside the main canister housing or side tracks.

• Smart Synchronization: The lighting array interfaces directly with the central controller, automatically illuminating the entire truck bed during opening cycles to ensure seamless cargo handling in pitch-black night conditions

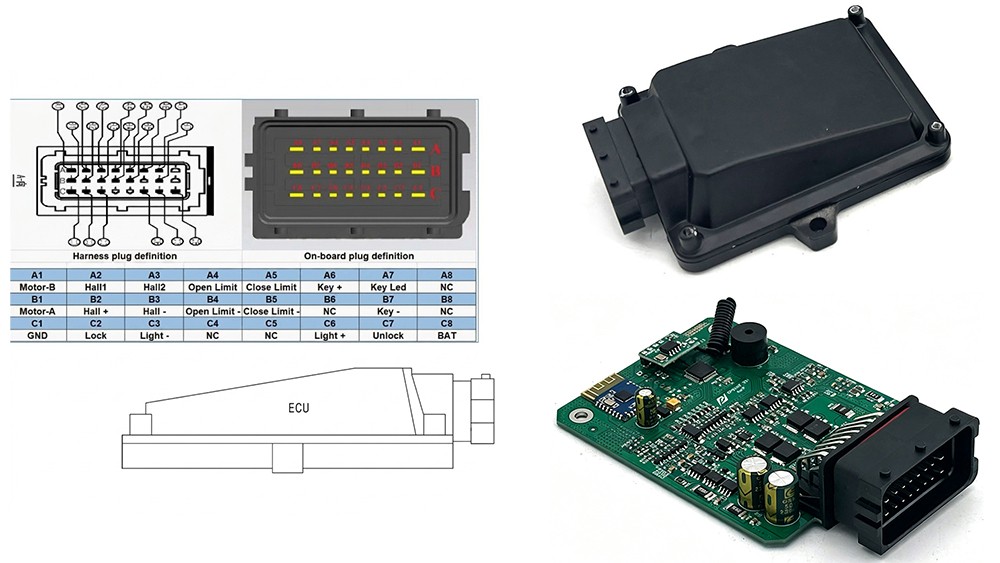

Part 5: Central Smart Control ECU Module

The central intelligence unit serves as the command hub for the entire automated bed cover architecture:

• Advanced Logic Controller: Housed inside a fully sealed, impact-resistant weatherproof casing, the intelligent Electronic Control Unit (ECU) manages soft-start and soft-stop parameters, minimizing dynamic wear on the physical aluminum slats.

• Seamless Electrical Management: Monitors system current fluctuations in real-time, delivering steady signal relays to prevent motor straining and safeguard the vehicle's central electrical loop.

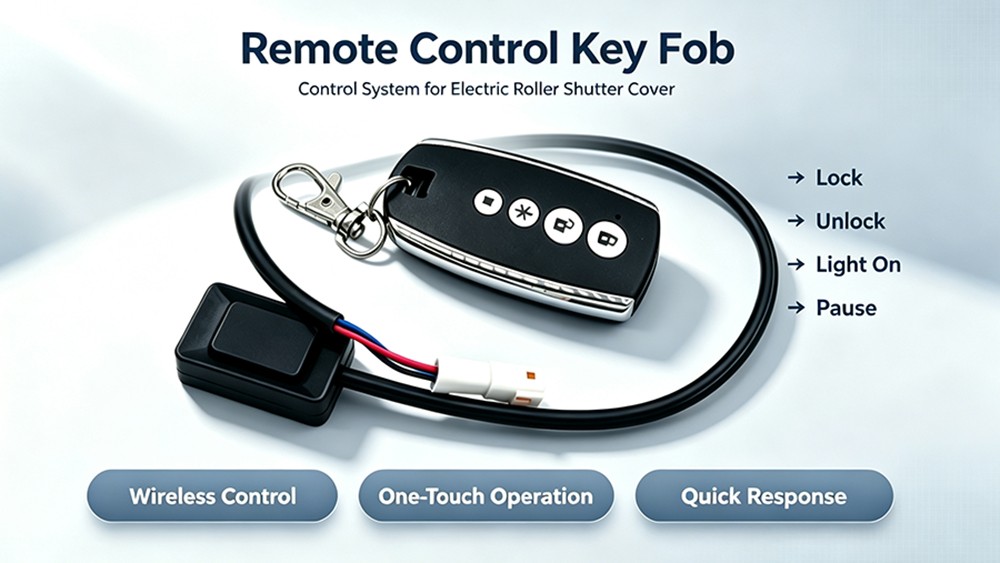

Part 6: Encrypted Rolling-Code Wireless Remote Keys

When locked down onto the truck chassis, the canopy matches the vehicle's original cabin contours, looking like a factory-fit extension. The sleek, cab-high profile creates an aerodynamic flow that reduces fuel drag compared to exposed cargo boxes. On rough off-road terrain or rugged job sites, the multi-layered EPDM base gaskets and cushion blocks completely absorb vibrations, preventing under-chassis metal rattling and paint scuffing while maintaining a 100% dust-free internal environment.

• Button 1: System Lock– Secures the interlocking aluminum slats instantly, locking the bed cover firmly into the side tracks to establish an anti-theft seal at the tailgate interface.

• Button 2: System Unlock– Disengages the mechanical electronic latch pins to allow rapid motorized retraction of the rolling shutter into the low-profile canister.



• Button 3: Cabin Lights Control– Remotely toggles the integrated linear LED courtesy light strip, providing high-lumen cargo visibility during night-time operations.

• Button 4: System Pause – Functions as an immediate mid-travel override or emergency stop, allowing operators to safely halt slat deployment at any intermediate positioning interval.

The package is completed by an independent, low-profile proximity signal receiver box. It wires directly into the vehicle's central electrical loop via a pre-terminated harness featuring a 2-pin snap-lock waterproof direct-connect terminal plug, ensuring instantaneous, lag-free signal transmission loops within the perimeter of the truck bed.

Part 7: Conclusion & B2B Inquiry Channel

Securing a definitive competitive edge in the global automotive aftermarket requires an agile, robust, and transparent manufacturing partner. By sourcing your electrical control modules directly from our production facility, your wholesale business bypasses third-party trading markups, securing heavy-duty automotive hardware at highly competitive factory-direct wholesale pricing.

We enforce a strict 100% in-house quality inspection protocol on all central ECU boxes, gear motors, and custom wire harnesses before bulk container sealing. We fully support flexible low-MOQ trial shipments for initial technical and market validation, backed by complete technical support for customized wiring lengths, specific plug configurations, and private-label branding.

Ready to upgrade your product lineup or discuss bulk fleet custom specifications?
Our application engineering and sales team are online to review your drawings.

[Click Here to Contact Us / Request a Wholesale Price List & Technical Samples]
