Electric Power Running Board Troubleshooting & Repair Guide: Causes, Diagnostics, and Solutions
Automatic power running boards are among the most convenient upgrades for modern trucks and SUVs, offering effortless entry and sleek aesthetics. However, because they are mounted close to the chassis, they are constantly exposed to road grime, mud, road salt, and physical impacts.
When an electric step stops deploying, retracts partially, or makes grinding noises, identifying the failing component quickly saves time and repair costs. Below is a comprehensive diagnostic and repair guide broken down by key component failure.

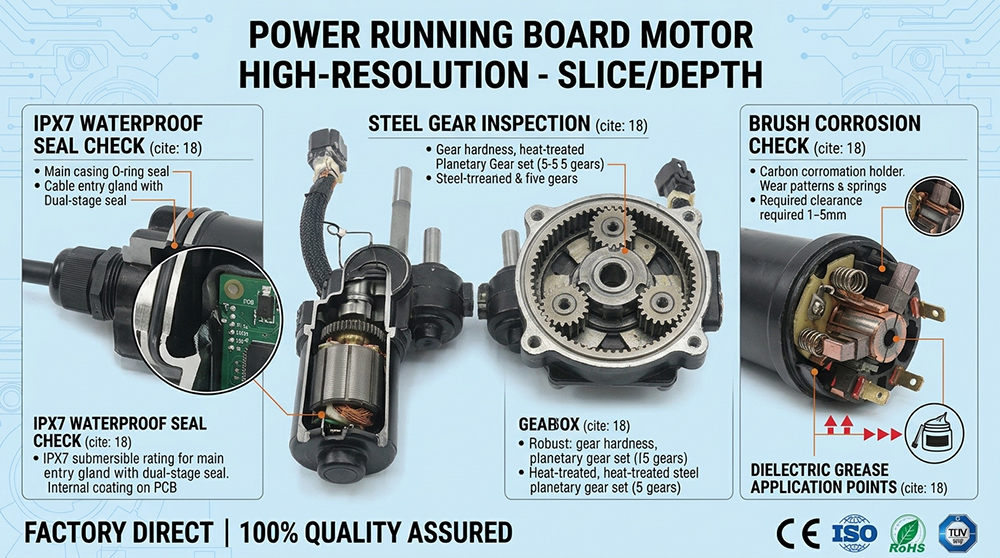

1. Motor Failures: Stalling, Grinding, or No Response
The electric motor is the power unit of the system. Over time, water ingress or internal gear wear can cause total failure.
Common Symptoms:
The motor clicks or buzzes, but the step doesn't extend.
Loud grinding or screeching noise when deploying.
Complete silence (no motor movement when opening the door).
Root Causes:
Water Ingress & Corrosion: Non-sealed or worn seals allow road moisture to enter, corroding the internal motor brushes.
Stripped Internal Gears: Excessive weight or deploying against frozen ice strips internal reduction gears.
Burnt Motor Windings: Prolonged mechanical binding overloads the motor.
Repair & Solution:
Voltage Test: Disconnect the motor wiring harness and test for 12V DC current at the plug when the door is opened.
Replacement: If 12V power is present but the motor does not turn, replace the motor assembly. Opt for high-torque motors with IPX7/IP68 waterproof seals and steel gears to prevent recurring failures.

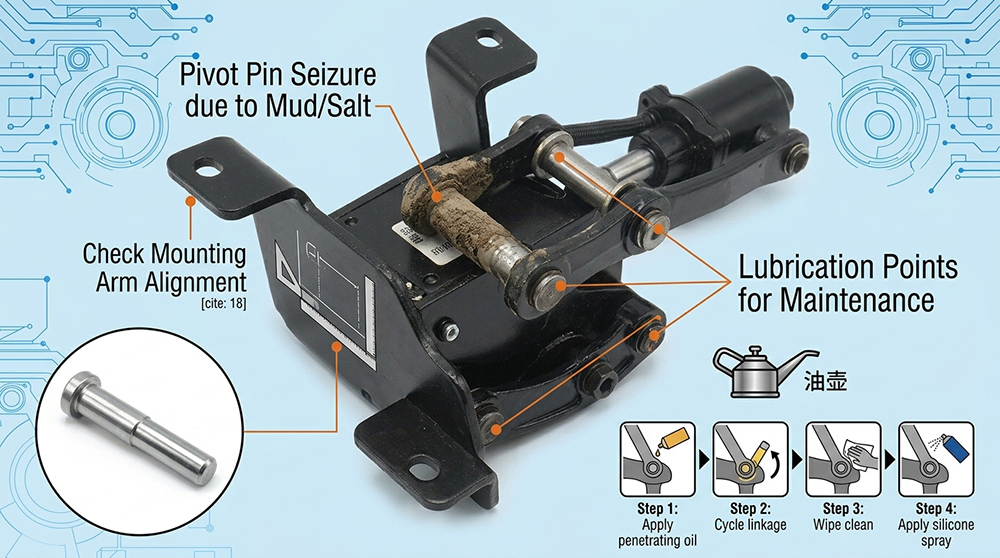

2. Linkage Bracket Jamming: Partial Extension or Sticking
The linkage hinges support passenger weight and swing the step out and in. Exposed to dirt and salt, pivot points can seize.
Common Symptoms:
Step extends halfway and stops or retracts back immediately (anti-pinch triggering).
Slow, sluggish, or uneven movement across the board.
Visible sag or play in the step surface.
Root Causes:
Dirt & Grit Accumulation: Mud bakes into the pivot pins, increasing rotational friction.
Corrosion & Rust: Lack of lubrication causes steel pins to rust inside aluminum brackets.
Physical Impact: Off-road rocks or curb strikes bend the mounting arm out of alignment.
Repair & Solution:
Clean & Lubricate: Spray the pivot joints with penetrating oil (e.g., WD-40 Specialist or silicone lubricant), manually working the hinge back and forth.
Alignment & Replacement: Inspect brackets for cracks or bent geometry. If the bracket is deformed, replace the damaged hinge assembly to prevent motor strain.

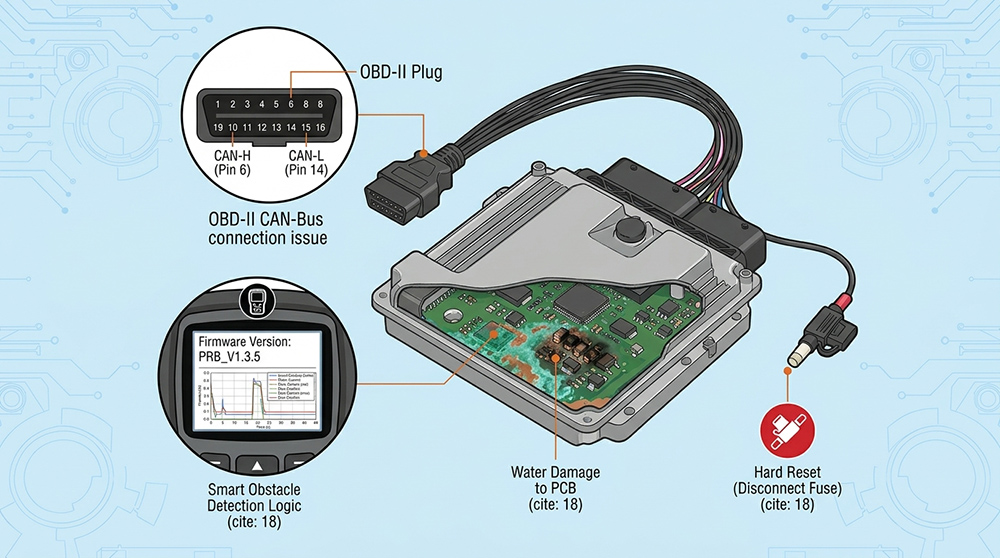

3. Control Module (ECU) & Sensor Bugs: Erratic Behavior
The ECU processes door signal inputs and controls motor polarity to extend or retract the steps.
Common Symptoms:
One side works while the other remains unresponsive.
Steps deploy randomly while driving or fail to retract when closing doors.
Steps stay extended permanently.
Root Causes:
Repair & Solution:
Hard Reset: Disconnect the main battery inline fuse for 5 minutes, then reconnect to reset the ECU microprocessor.
Check OBD Connection: Ensure the CAN-bus reader module is securely plugged into the OBD port.
Module Replacement: If power reaches the ECU but no signal outputs to the motors, replace the control unit.

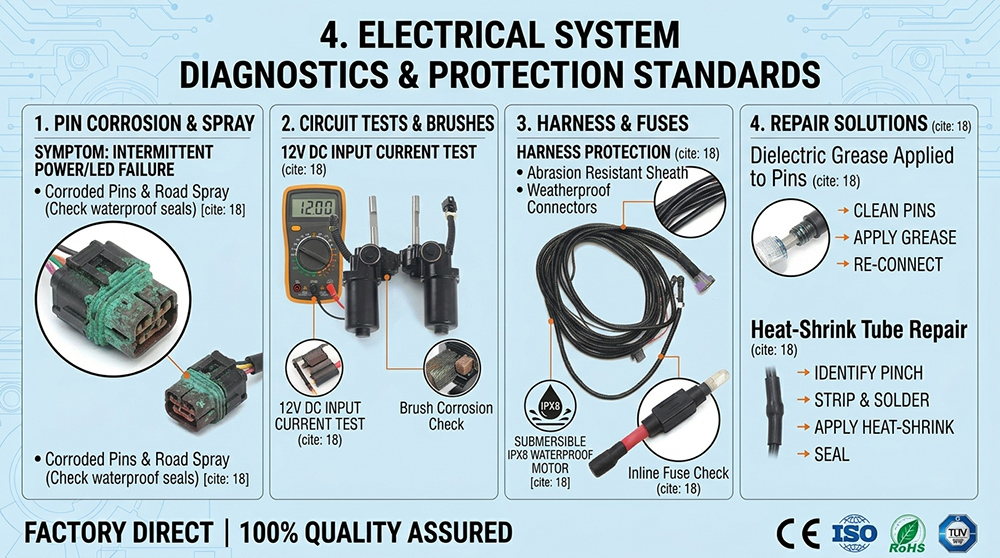

4. Wiring Harness & Connector Issues: Intermittent Power Loss
The harness routes power from the vehicle battery to the ECU and motors.
Common Symptoms:
Intermittent operation (works on sunny days, fails during rain).
No LED light illumination (if equipped with LED step lights).
Root Causes:
Corroded Pins: Road spray oxidizes exposed connector pins.
Pinched Wires: Harness crushed under body mounts or chassis frame rails.
Blown Fuse: A jammed motor spikes current draw, blowing the 30A inline fuse.
Repair & Solution:
Fuse Inspection: Check the main power line fuse holder near the battery; replace if blown.
Dielectric Grease: Clean oxidized harness plugs with electrical contact cleaner and apply dielectric grease to waterproof the seal.
Summary: Quick Diagnostic Matrix
| Failure Symptom | Most Likely Component | Recommended Action |
| No response, no sound | Fuse, ECU Power, or Motor | Check 30A inline fuse → test motor voltage → replace motor if dead |
| Grinding noise, stuck step | Internal Motor Gear or Hinge | Inspect brackets for mud → check motor gear condition |
| Stops halfway, reverses | Linkage Friction / Obstacle Detection | Clean & lubricate bracket pivot pins → check arm alignment |
| Random deployment while driving | Door Sensor / ECU Glitch | Check OBD-II module connection → perform ECU power reset |
