MYES two pin plug power side step motors' technical specification

Date:[2021-11-23]     Views:

MYES two pin plug power side step motors' technical specification:

1. Standard status:

1.1 Range of temperature and humidity: temperature: -20℃~ +65℃; Humidity: 45%~75%;

1.2 Test conditions:

(1) All tests shall be carried out in the range of standard temperature and humidity (temperature: 20±2℃, humidity: 65±5%);

If there is no dispute between the two parties, the test can be carried out under normal temperature and humidity (temperature: 5-35 ℃, humidity: 45-75%).

(2) High and low temperature test shall be conducted according to -30℃, +80℃ and 75% humidity. Test methods and standards shall be in accordance with the implementation of Q /FSJS002-2018 Automotive Pedal Motor Technical Standard.

2. Installation conditions:

The motor can be installed at any Angle, but the specific needs to be considered according to different models, chassis structure and bracket structure. Pay attention to the electric motor's maximum distance between the machine and the ground is appropriate, considering the vehicle passability and avoid motor collision damage.

3. The motor features:

Power Side Step Motor Parameter
Rated voltageDC 12V
No-load current≤ 1.5A
Rated power35W
Noise≤ 60 dB
Load 5NmSpeed 13 ±1 RPM; Current ≤ 5.0A
Load 20NmSpeed 9 ±1 RPM; Current ≤ 10A
Output shaft speed15 RPM ± 1RPM
Braking torqueTorque ≥ 40 N.m; Current≤20A
Output shaft steeringThe motor on the left:counterclockwise; The motor on the right:clockwise
Insulation classF class
Protection gradeIP67

4. Environmental characteristics:

(1) Operating temperature and humidity range: temperature: -20℃~ +65℃; Humidity: 45%~75%.

(2) Storage temperature and humidity range: temperature: -10~40℃, humidity: 75%MAX.

5.Wiring definition:

2 pin plug.jpg

6. The motor specification:

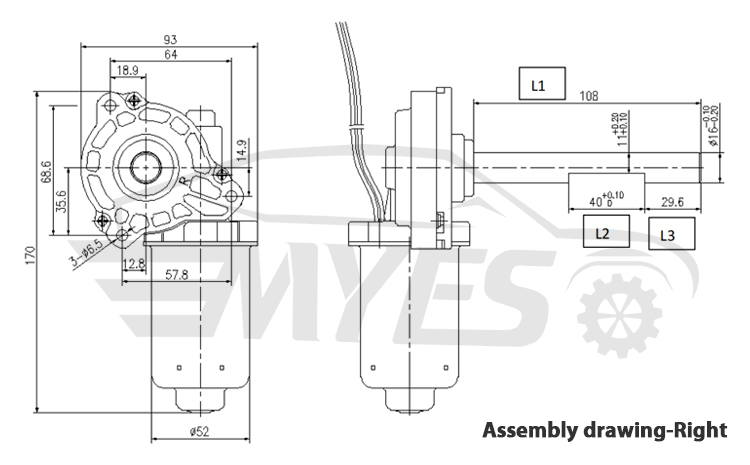

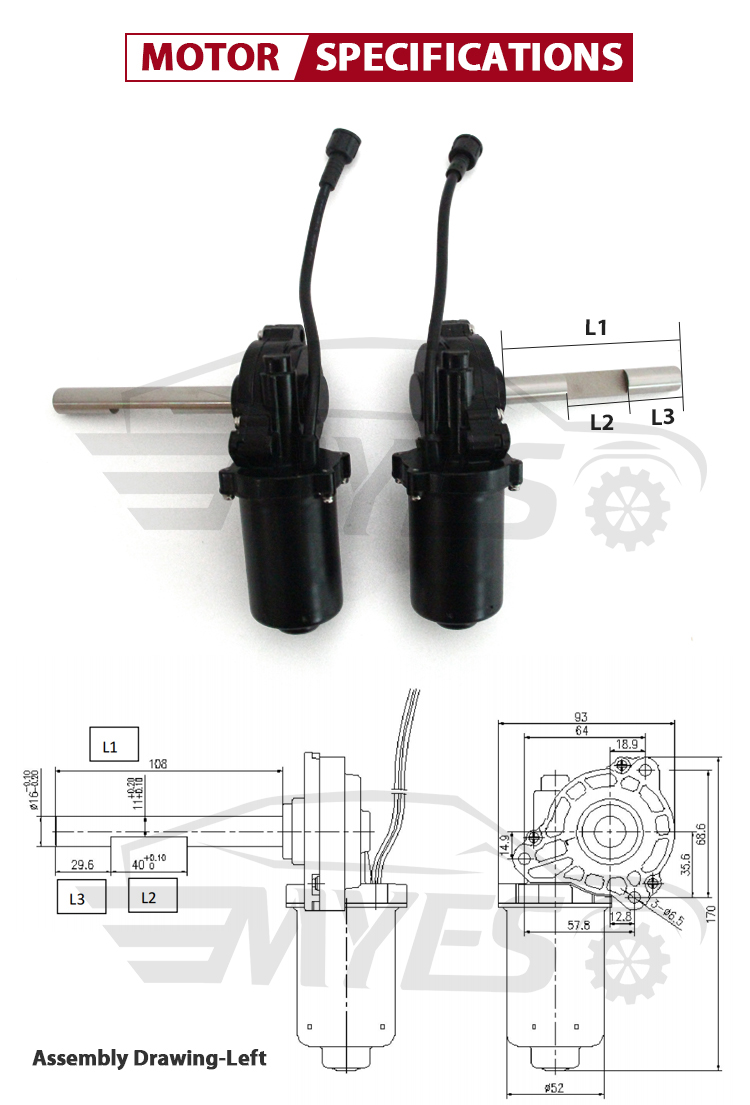

side step motor specifications.jpgright side step motor specification.jpg

7. Motor specifications: Motor output shaft specifications: size unit mm

NO.L1L2L3Shaft DiameterNote

Note: Output shaft specifications can be customized according to customer requirements.
