# Replace Only the Motor: How to Fix Range Rover Power Steps Without Buying Costly Hinge Brackets
If you own a luxury fifth-generation **Range Rover (L460 2021+)** or **Range Rover Sport (L461 2022+)**, you already know that the deployable side steps are essential to maintaining the vehicle's signature elegance and ground clearance. The system is designed to glide out seamlessly when a door opens and fold neatly under the chassis when the vehicle drives away.
However, because these steps operate entirely on the underbody, they bear the brunt of road moisture, grime, mud, and harsh winter road-melting chemicals. Over time, the internal components fail, leaving owners with jammed or hanging running boards.
If you take your vehicle to a franchise dealership for a repair, you will likely face a shock: a bill for thousands of dollars. Why? Because **dealerships refuse to sell the motor by itself**. They force you to buy the entire structural hinge bracket and step assembly, adding massive parts markups and high labor rates.
The smarter, cost-effective solution is simple: **replace only the standalone electric actuator motor**.
---
### The Anatomy of the Failure: Brackets vs. Motors
When a power running board stops deploying, 90% of the time, the heavy-duty aluminum or iron underbody structural brackets are perfectly intact. They are solid metal hinges designed to hold hundreds of pounds.
The weak point is always the **electric drive motor capsule**. Moisture and grit eventually degrade the outer shaft seals, triggering one of two common failure points:
1. **Internal Gear Striping:** The electric motor turns, and you hear a distinct clicking or whining noise under the car, but the step doesn't budge. The internal gears have stripped.
2. **Coil Burnout:** Water breaches the sealed housing, causing internal corrosion or short-circuiting. The motor goes completely dead, leaving the step permanently retracted or extended.
By leaving your original structural brackets in place and swapping out only the failed core motor, you save over $1,500 in unnecessary hardware fees.
---

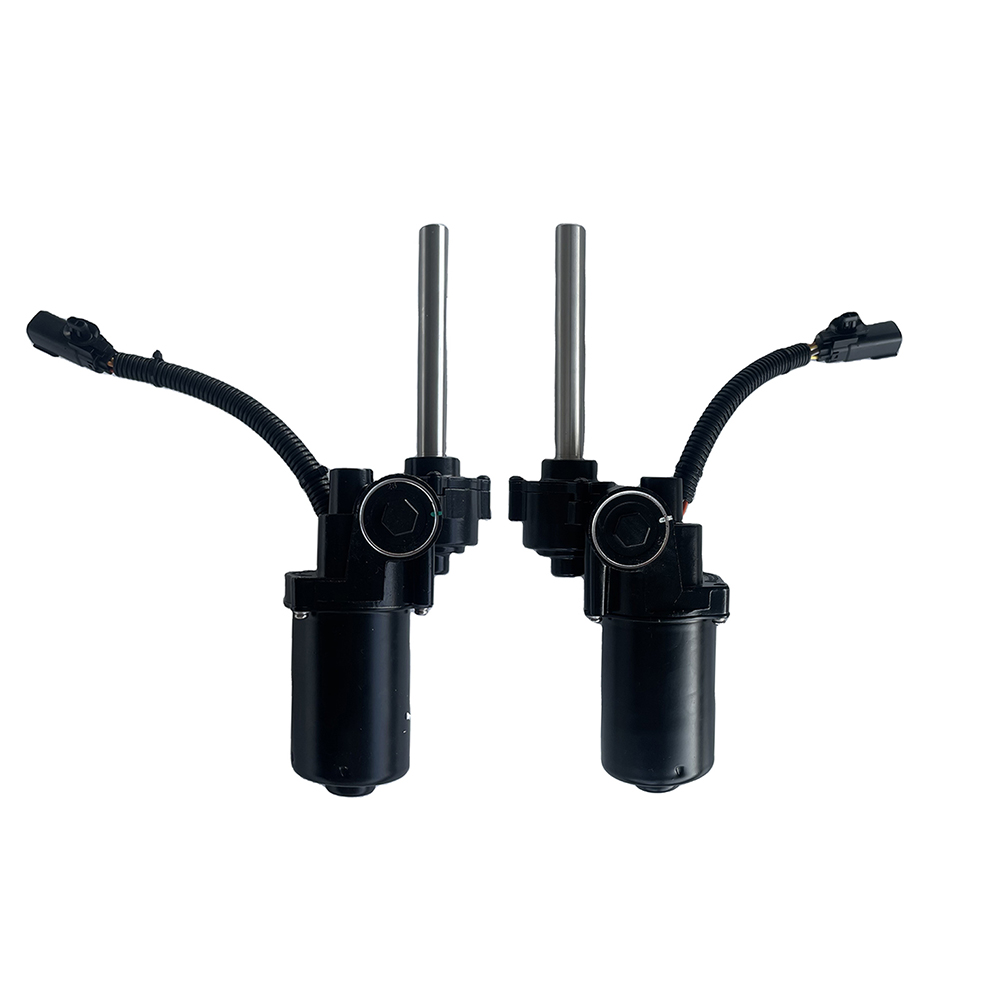

### Technical Spotlight: Left (VPLKP0500) & Right (VPLKP0499) Motors
For the newer L460 and L461 Land Rover platforms, the production engineering and retail specifications have changed completely compared to older vehicle generations. To ensure a flawless repair, you must match the exact side-specific SKU numbers:
* **Left-Hand Side (LHS) Motor SKU:** VPLKP0500 (Engineering Stamped Number: M8EM-15790-BB)
* **Right-Hand Side (RHS) Motor SKU:** VPLKP0499 (Engineering Stamped Number: M8EM-15791-BB)

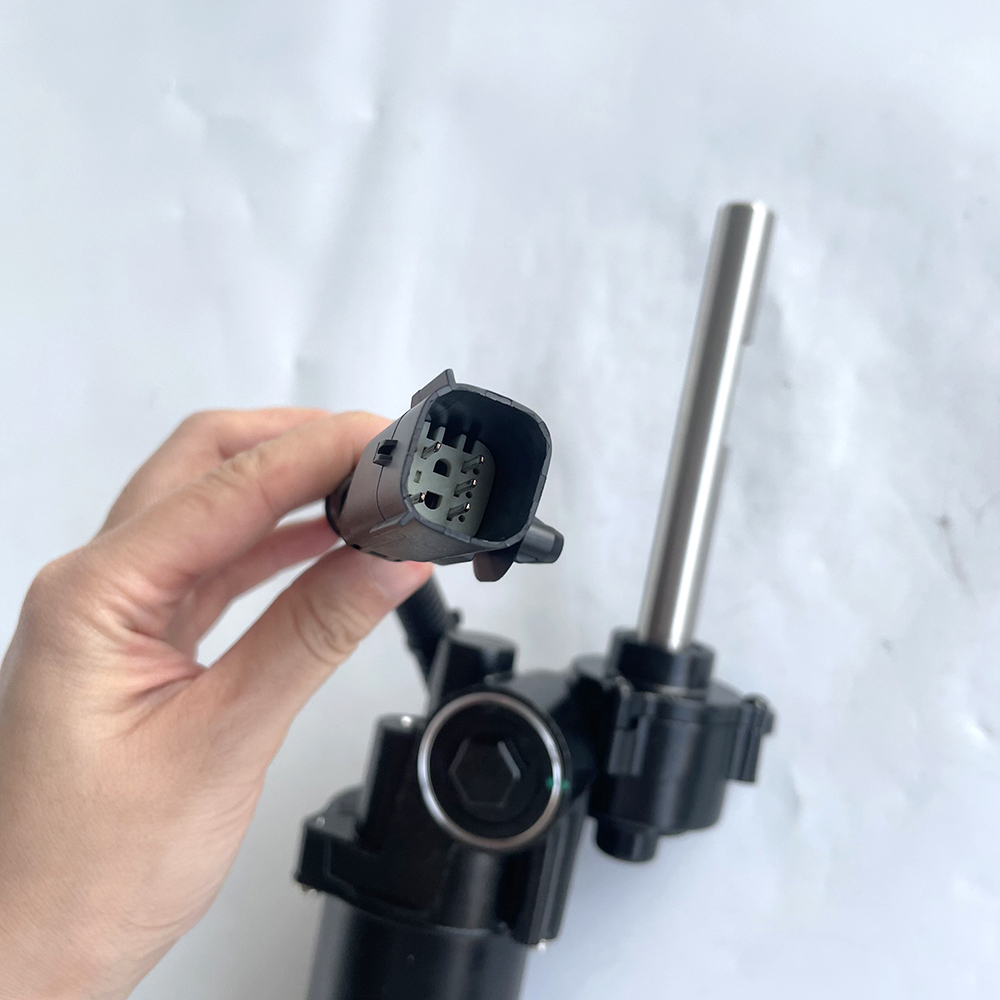

* **Plug Configuration:** Modern 5-Pin waterproof sealed connector
* **Material Composition:** Heavy-duty die-cast aluminum alloy casing paired with a polished stainless steel drive piston.
| VEHICLE CHASSIS | PRODUCTION YEARS | COMPATIBLE OEM RETAIL SKUs |
| :--- | :--- | :--- |
| Range Rover L460 | 2021, 2022, 2023, 2024, 2025+ | Left Side SKU: VPLKP0500 (Engineering No: M8EM-15790-BB) |
| Range Rover Sport L461 | 2022, 2023, 2024, 2025+ | Right Side SKU: VPLKP0499 (Engineering No: M8EM-15791-BB) |
The new 5-pin layout is critical. It feeds active data lines back to the Running Board Module (RBM), handling the vehicle's automatic safety anti-pinch technology. Universal aftermarket motors or older 2-pin motors will not communicate with the L460 computer framework and will trigger immediate dashboard errors.
---
### Step-by-Step Replacement Instructions
Swapping the motor without removing the main underbody structural brackets can be completed in a home garage or an independent repair shop with standard tools.
#### Step 1: Force Step Deployment
Turn on your vehicle and navigate to the center infotainment console (PIVI Pro Screen). Select **Roof Access Mode** or force the deployable steps to the fully extended position so you can safely access the motor bracket array.
#### Step 2: Unplug the Wiring Loom
Locate the black corrugated wire loom coming from the vehicle harness to the motor. Release the safety locking tab on the square 5-pin waterproof plug housing and gently disconnect it. Inspect the vehicle-side pins for any green water corrosion; clean with contact cleaner if necessary.
#### Step 3: Remove the Fasteners
Using an appropriately sized socket wrench, back out the mounting bolts securing the motor housing to the main hinge bracket frame. Keep firm pressure on the motor body so it does not drop or twist the internal alignment shaft as the last bolt comes free. Slide the old motor straight off the main pivot shaft.
#### Step 4: Prep and Clean the Mechanical Hinge
Before inserting your new motor, manually swing the bare metal step bracket back and forth. If the hinge feels stiff or stuck, **do not install the new motor yet**. Excessive mechanical resistance is what burned out your original unit. Thoroughly spray the aluminum linkages with a premium **dry silicone lubricant spray** until it swings completely free under its own weight. Avoid heavy grease, as it traps sand and destroys the movement.
#### Step 5: Mount and Re-Calibrate
Align the internal splines of the new motor onto the linkage shaft. Re-insert the mounting bolts and torque them evenly to factory specs (typically 24Nm for associated underbody frame hardware). Click the 5-pin wire plug back into place.
Cycle the car doors to test. In some cases, the RBM module may require a quick reset or calibration via an OBD2 tool to read the new electrical current thresholds.
---
### Buy Smart, Buy Brand-New OEM Quality
Don't gamble on cheap, unbranded aftermarket options that fail within months, and don't pay thousands at a franchise dealership for structural hardware you don't need.
We stock premium, fully tested, factory-direct **Genuine Deployable Side Step Replacement Motors** for the L460 and L461 series. Restore the flawless, quiet luxury operation of your vehicle today.
