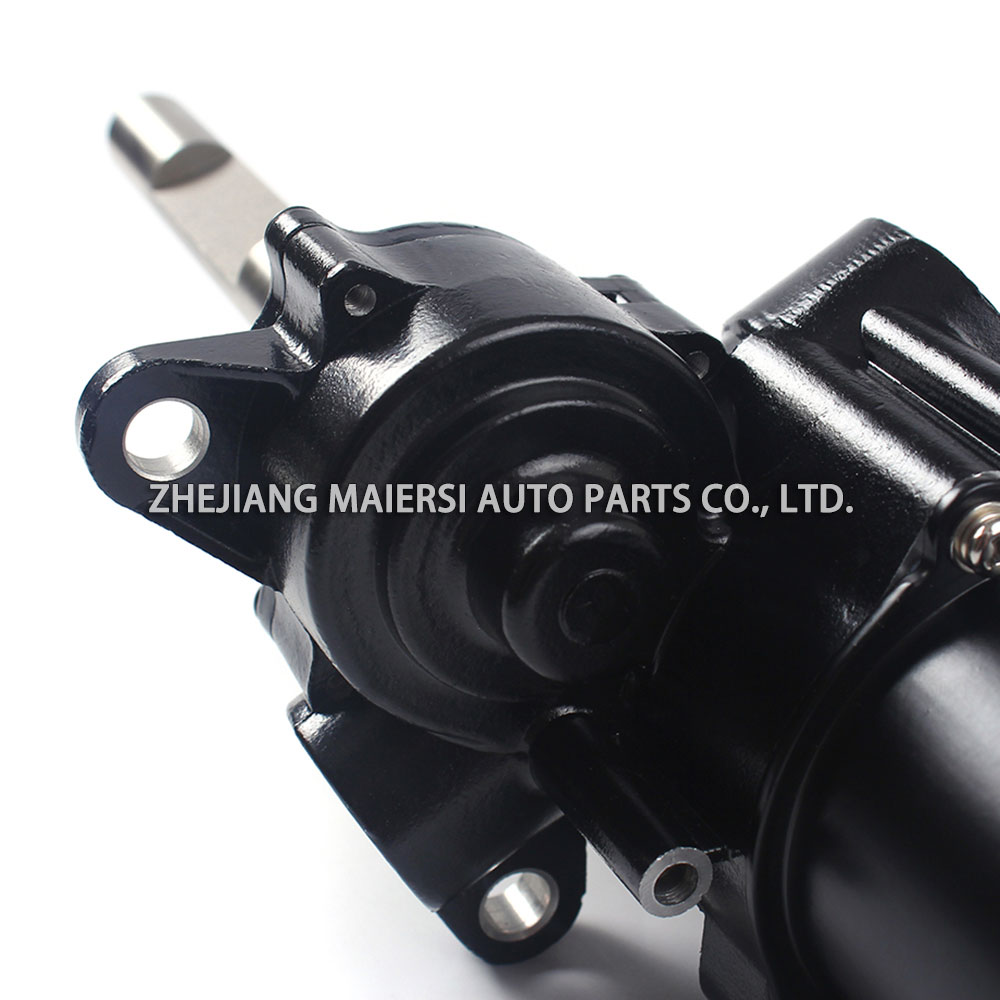

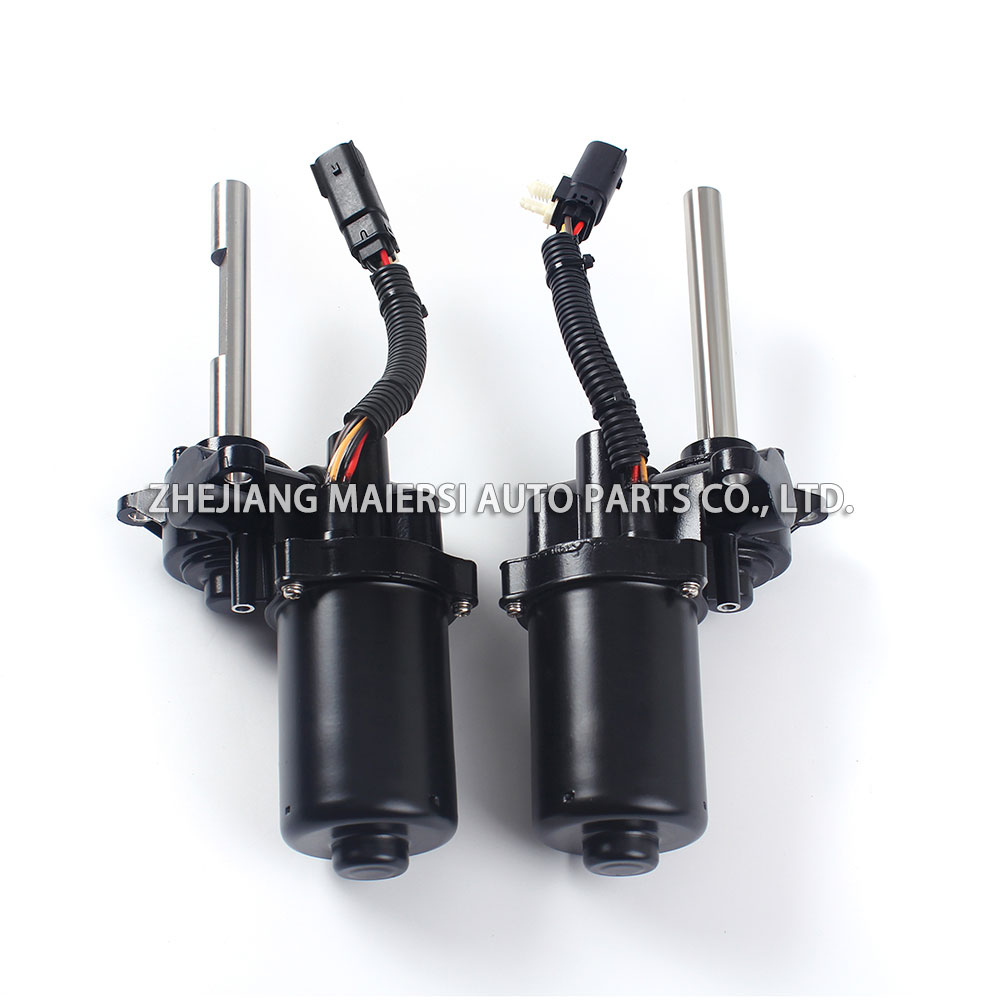

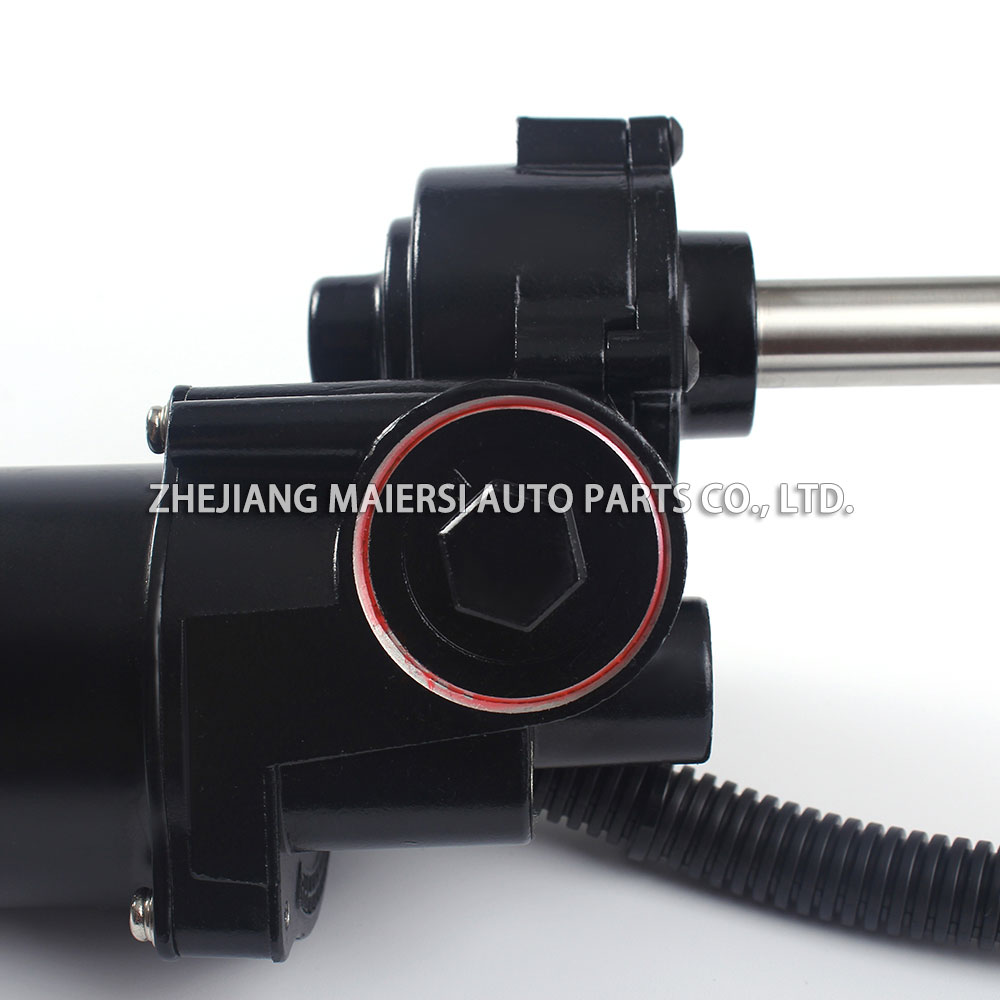

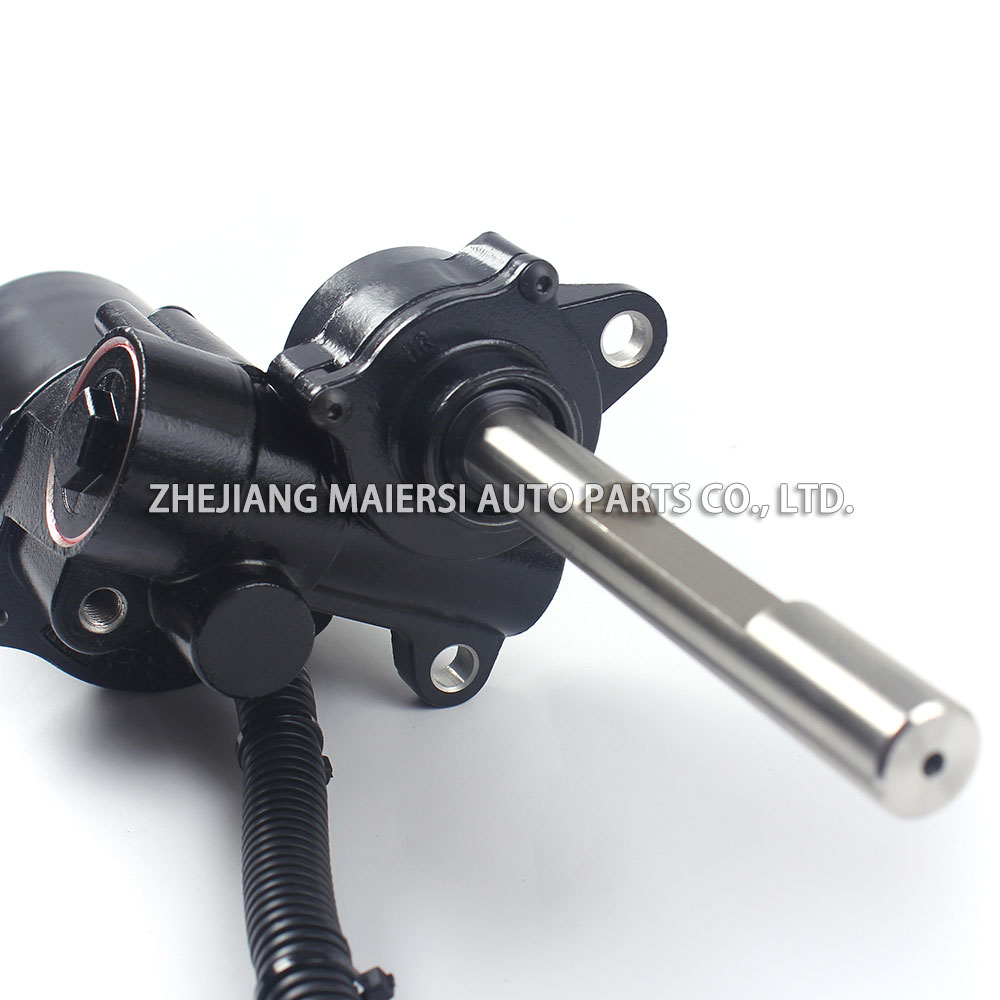

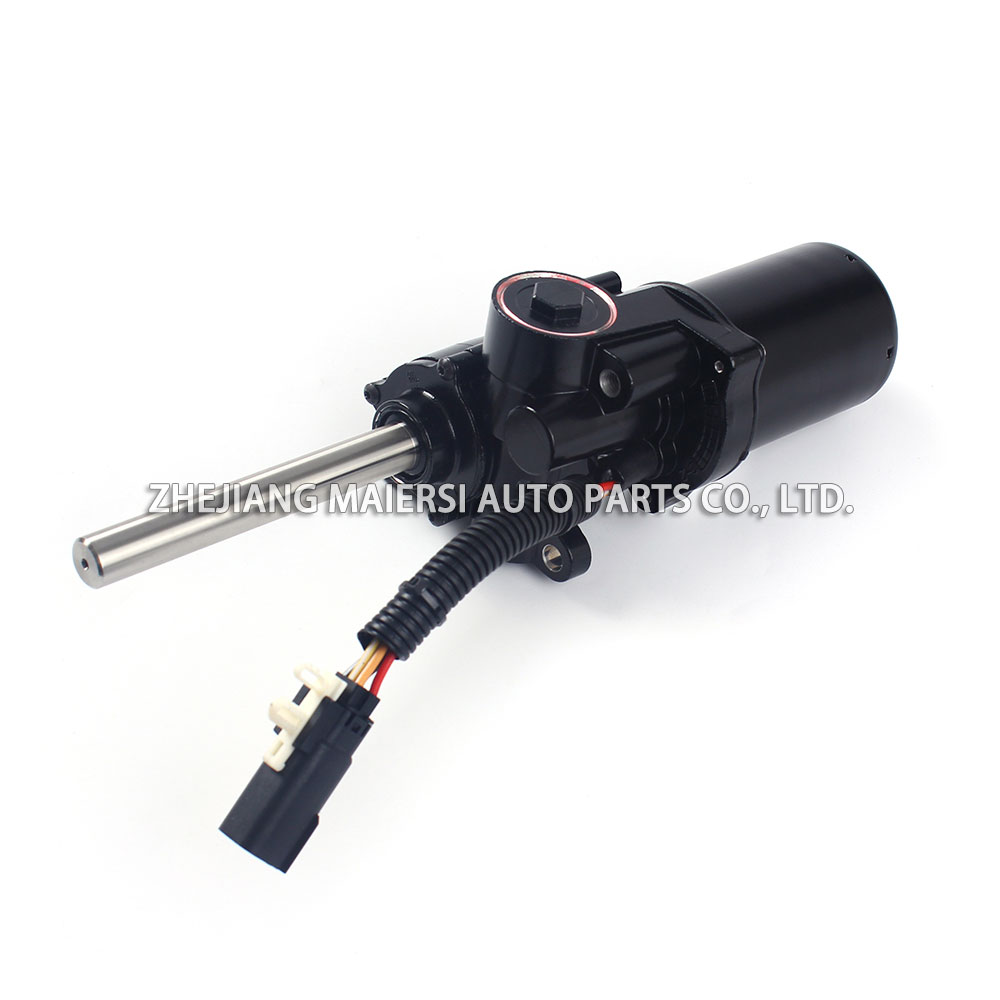

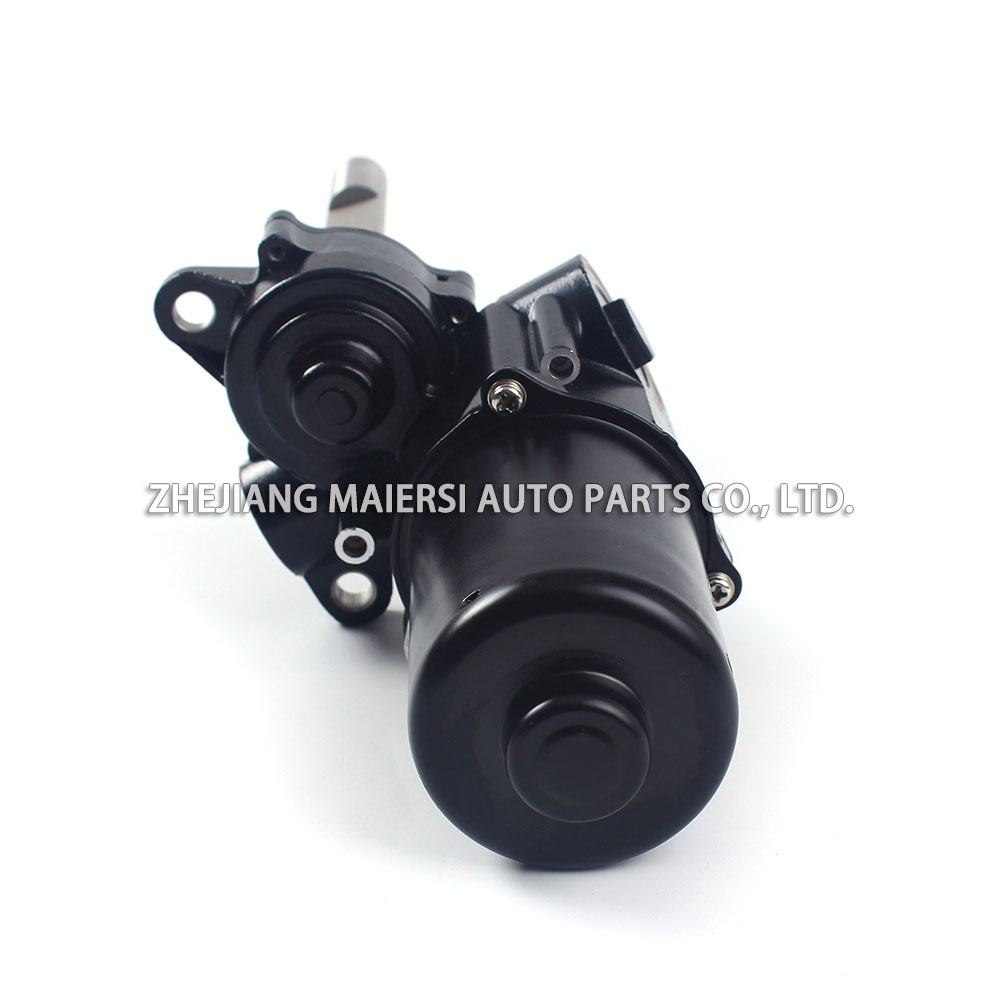

Running Board Motor Information:
【Usage】The front left driver side or right passenger side electric power running board motor is used for 2007-2014 Ford F150. Replaces left-9L3Z16A507A, 9L3Z-16A507-A, AL3Z16A507A, AL3Z-16A507-A; right-9L3Z16A506A, 9L3Z-16A506-A, AL3Z16A506A, AL3Z-16A506-A.
【Replacement】Power running board motors usually fail in one of two ways: at the hinge or due to motor failure causing the pedal to jam. Whether the failure is due to the hinge or the motor, our electric side step assembly can provide you with protection.
How would you rate the quality of this products:
Electric power running board motors power the automatic pedals of pickup trucks and SUVs. The motor can restore the normal operation of the vehicle power pedal. With the passage of time, the pedal cannot be dropped and stowed normally. This is a normal phenomenon. You can solve this problem by replacing the electric pedal motor.
【Function】The electric power running board motor powers the automatic pedal of the 2007-2014 Ford f150. The pedal motor can restore the normal operation of the vehicle's power pedal.
【Quality】The power running board motor is manufactured by Zhejiang Maiersi Auto Parts Co., Ltd., and meets or exceeds OEM requirements. All products have been tested by our QC team, and durable.
【OEM&ODM】Accept OEM & ODM service, we can produce the products according to customers' requirement.
Electric Power Running Board Motor Parameter | |
Vehicle type & OE No. | Ford F150 2007-2014 Replacement# Right-AL3Z16A506A Left-AL3Z16A507A Ford F150 2015-2020 Replacement# Right-FL3Z16A506B Left-FL3Z16A507A |

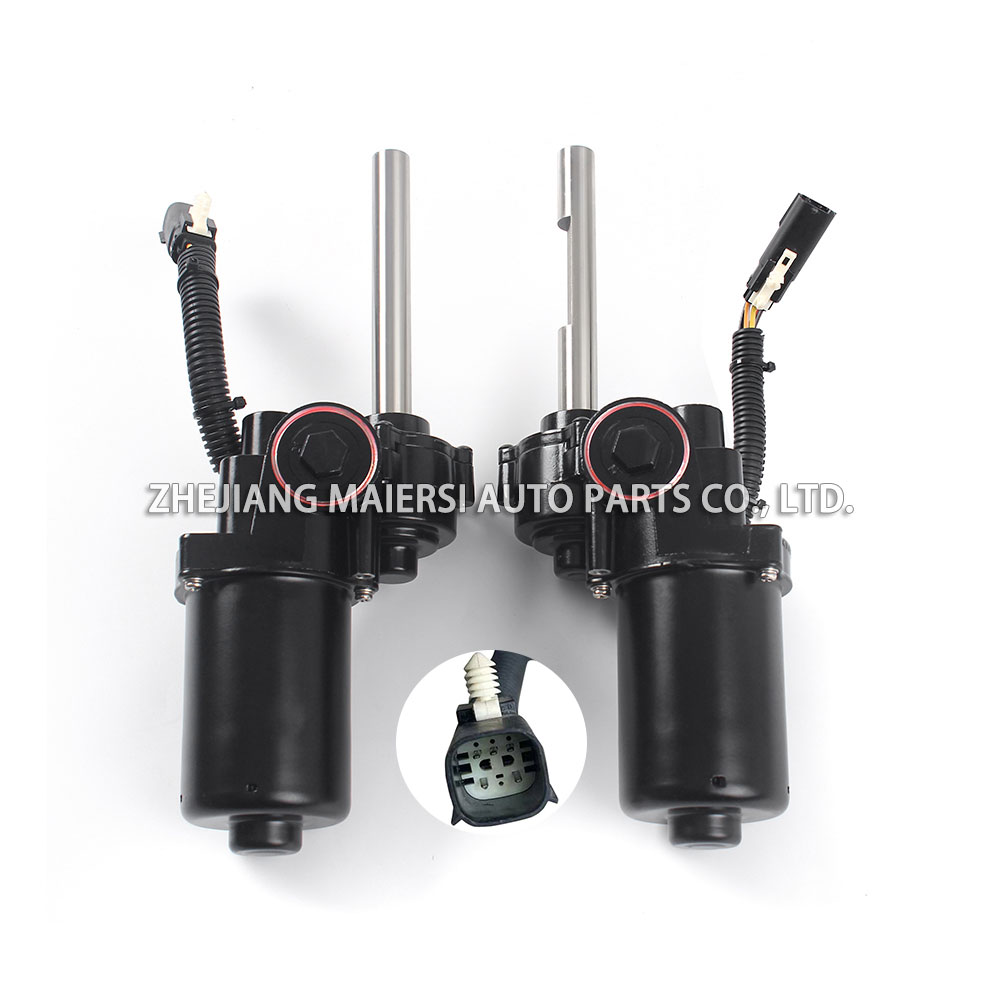

Plug style | five wires |
Rated voltage | DC 12V |
No-load current | ≤ 2.5A |
Rated power | 80W |
Frequency | 50/60Hz |
Noise | ≤ 60 dB |
Load 5Nm | Speed 14 ±1 RPM; Current ≤ 5.0A |
Load 20Nm | Speed 8 ±1 RPM; Current ≤ 12A |
Output shaft speed | 15 RPM ± 1RPM |
Braking torque | Torque ≥ 50 N.m; Current≤28A |
Output shaft steering | The motor on the left:counterclockwise; The motor on the right:clockwise |
Insulation class | F class |
Protection grade | IP67 |
Our power running board motor will be test when delivery from our factory. Our test conditions as follow:
1. All tests must be carried out in the range of standard temperature and humidity (temperature: 20±65℃, humidity: 65±5%);
If there is no dispute between the two parties, the test can be carried out under normal temperature and humidity(temperature:5-35 ℃, humidity: 45-75%).
2. high and low temperature test, according to low temperature -30℃, high temperature +80℃,humidity 75% test method and standard according “ to Implementation of Q /FSJS002-2018 Automotive Pedal Motor Technical Standard”.
Environmental characteristics:
1. Operating temperature and humidity range: temperature: -20℃~ +65℃; Humidity: 45%~75%.
2. Storage temperature and humidity range: temperature: -10~40℃, humidity: 75%MAX.
【VEHICLE FITMENT】
Year | Make | Model | Body & Trim | Engine & Transmission |
2014 | Ford | F-150 | FX2, FX4, King Ranch, Lariat, Limited, Platinum, STX, XL, XLT | 3.5L V6 - Gas, 3.7L V6 - CNG, 3.7L V6 - Flex, 3.7L V6 - LPG, 5.0L V8 - Flex, 6.2L V8 - Gas |
2013 | Ford | F-150 | FX2, FX4, King Ranch, Lariat, Limited, Platinum, XL, XLT | 3.5L V6 - Gas, 3.7L V6 - Flex, 5.0L V8 - Flex, 6.2L V8 - Gas |
2012 | Ford | F-150 | FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL, XLT | 3.5L V6 - Gas, 3.7L V6 - Flex, 5.0L V8 - Flex, 6.2L V8 - Gas |
2011 | Ford | F-150 | FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Platinum, XL, XLT | 3.5L V6 - Gas, 3.7L V6 - Flex, 5.0L V8 - Flex, 6.2L V8 - Gas |
2010 | Ford | F-150 | FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL, XLT | 4.6L V8 - Gas, 5.4L V8 - Flex |
2009 | Ford | F-150 | FX4, King Ranch, Lariat, Platinum, XLT | 4.6L V8 - Gas, 5.4L V8 - Flex |
