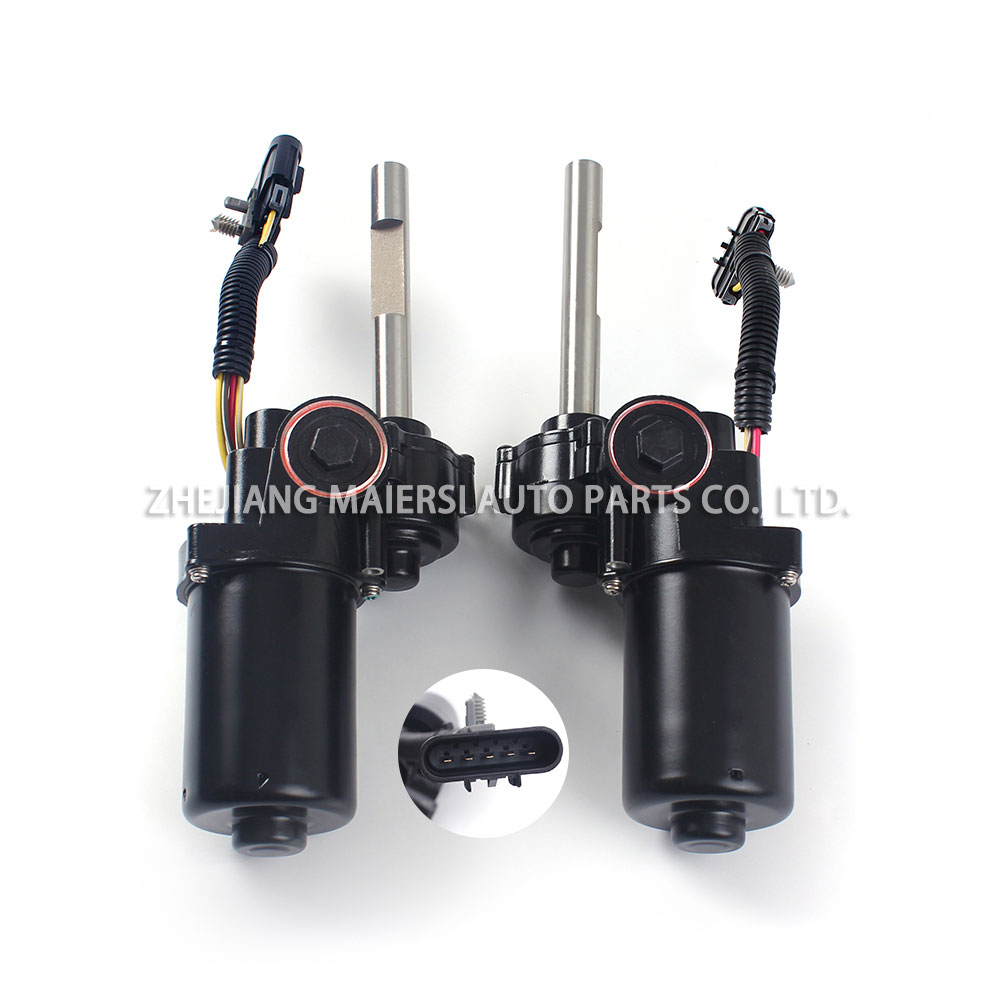

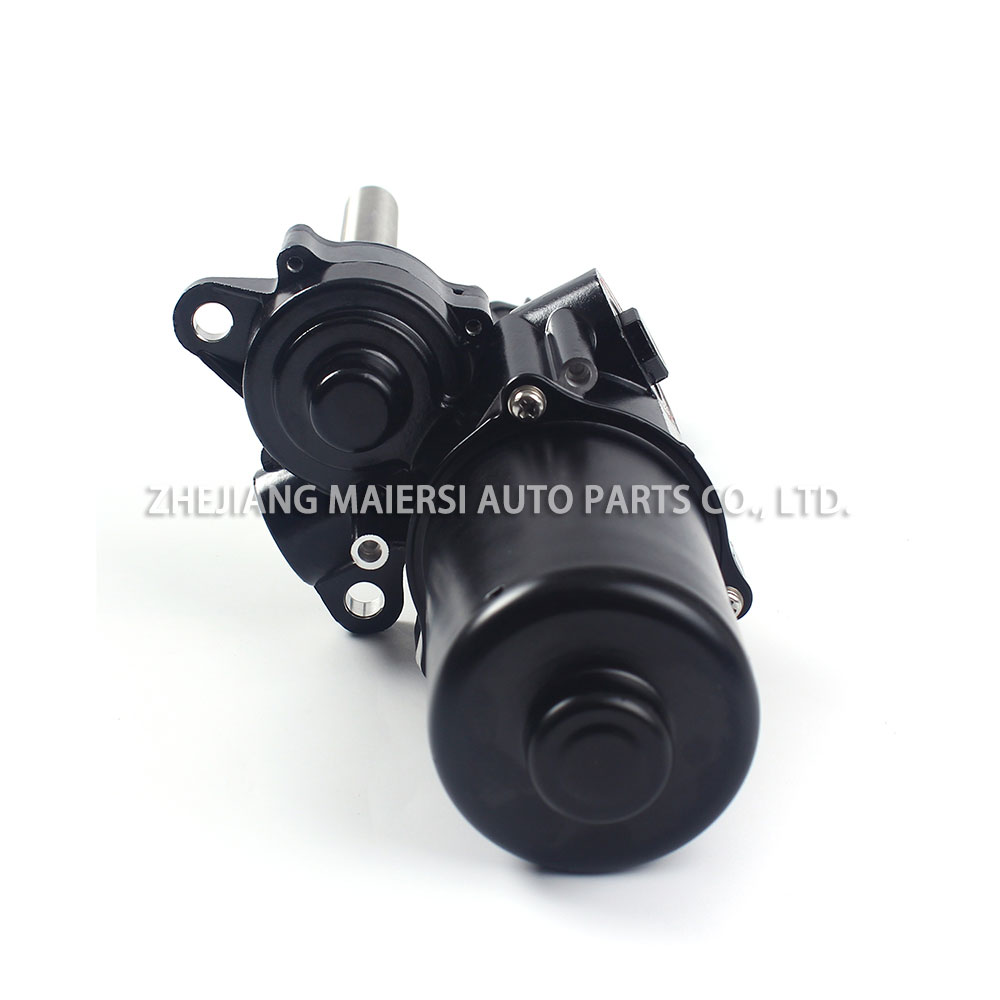

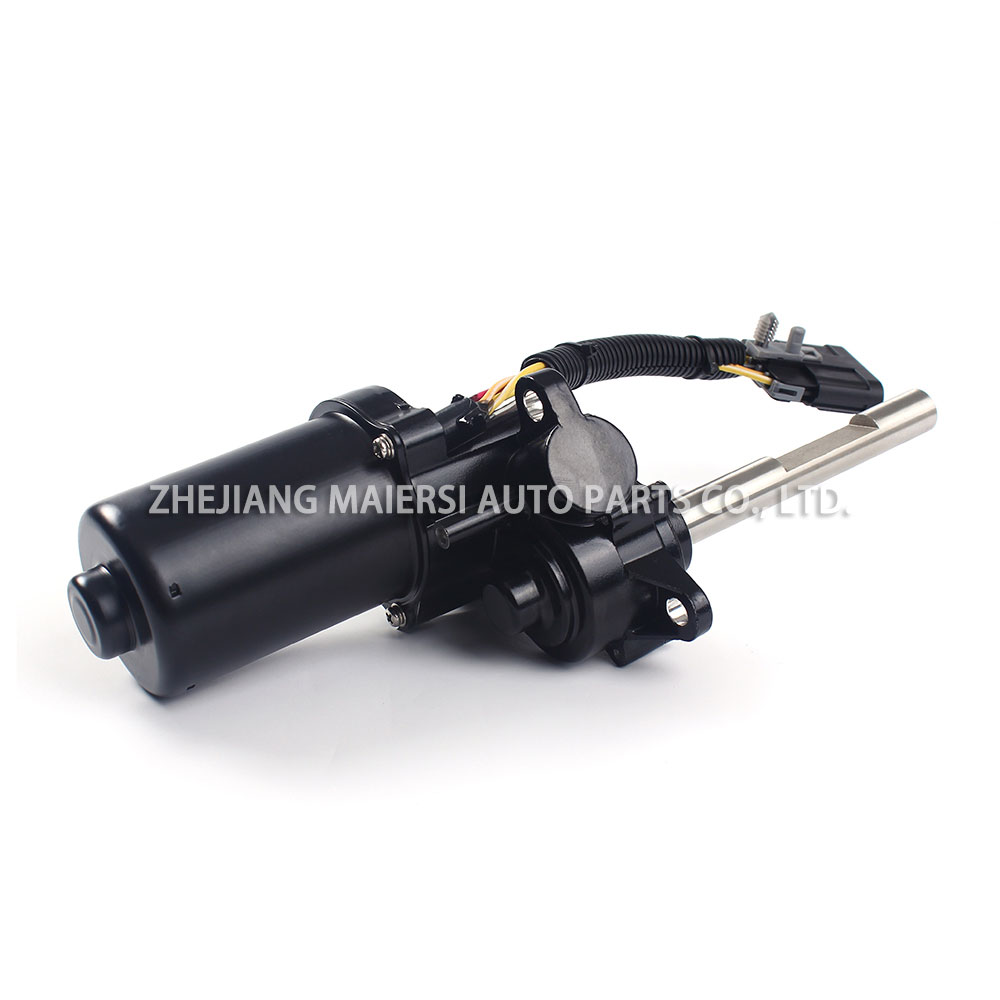

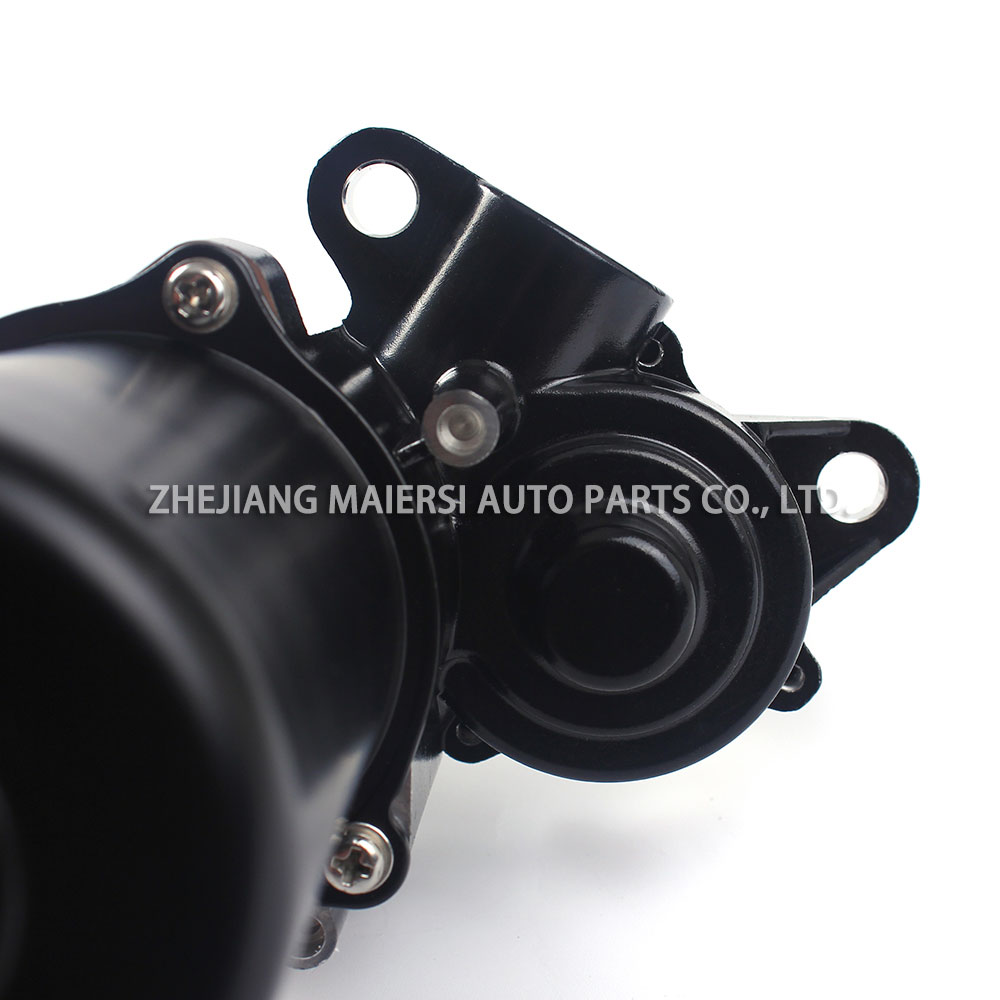

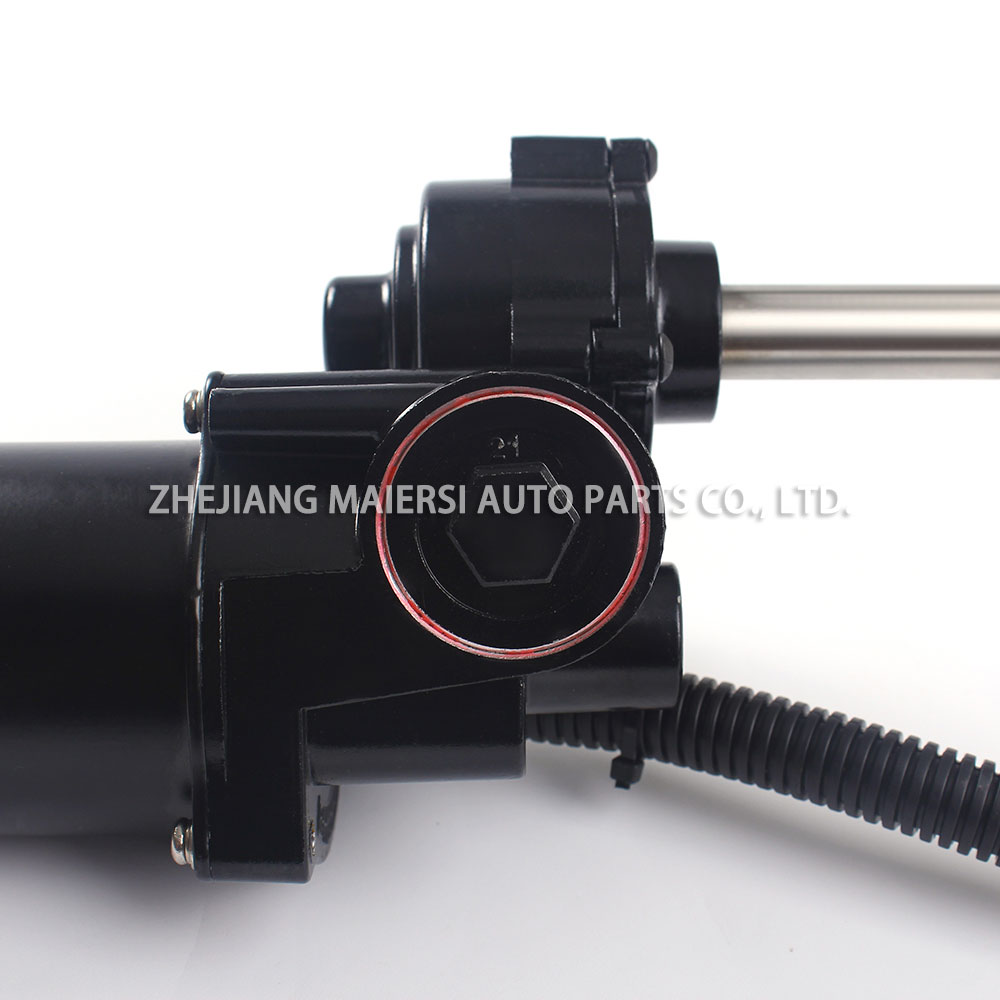

This left power running board motor fits for 2007 - 2014 Chevy Suburban 1500, 2007 - 2013 Chevy Suburban 2500, 2007 - 2014 Chevy Tahoe, 2007 - 2014 GMC Yukon, 2007 - 2014 GMC Yukon XL 1500, 2007 - 2013 GMC Yukon XL 2500, 2007 - 2012 Chevy Avalanche, 2007 - 2014 Cadillac Esealade ESV, 2007 - 2013 Cadillac Esealade EXT.
Customers can find the product you need accurately according to the OE number. OEM replace part number: left 19303235, 25971282, 15224286, 22778156, 20784792, LR004807, right 19303236, 25971283, 25822018, 22778157, 20784793, LR004808.
How would you rate the quality of this products:
Power side step motor powers the automatic steps on certain trucks and SUVs. The side step motor restores proper operation to a vehicle's power side step. The power side step motor typically fails one of two ways: at the hinges or because of a faulty motor that causes the step to become stuck. Whether the failure is along the hinges or due to the motor, this power side step motors has you covered.
【Function】The electric power running board motor powers the automatic pedal of the Chevy Suburban Tahoe Avalanche GMC Yukon Cadillac Esealade 2007-2014. The pedal motor can restore the normal operation of the vehicle's power pedal.
【Quality】The power running board motor is manufactured by Zhejiang Maiersi Auto Parts Co., Ltd., and meets or exceeds OEM requirements. All products have been tested by our QC team, and durable.
【OEM&ODM】Accept OEM & ODM service, we can produce the products according to customers' requirement.
Please check your OE number before you order it. If you have any questions, please contact us and we will answer you as soon as possible. This power running board fits 2007 2008 2009 2010 2011 2012 2013 2014 years.
| Power Side Step Motor Parameter | |
Vehicle type | 2007 - 2014 Chevy Suburban 1500, 2007 - 2013 Chevy Suburban 2500, 2007 - 2014 Chevy Tahoe, 2007 - 2014 GMC Yukon, 2007 - 2014 GMC Yukon XL 1500, 2007 - 2013 GMC Yukon XL 2500, 2007 - 2012 Chevy Avalanche, 2007 - 2014 Cadillac Esealade ESV, 2007 - 2013 Cadillac Esealade EXT. |
| OEM replace part number | Front left driver side: #19303235, 25971282, 15224286, 22778156, 20784792, LR004807. Front right passenger side: #19303236, 25971283, 25822018, 22778157, 20784793, LR004808. |
| Product shaft size | L1=120, L2=43, L3=28 or customized |
| Package size | 12.32 x 4.76 x 4.57 inches |

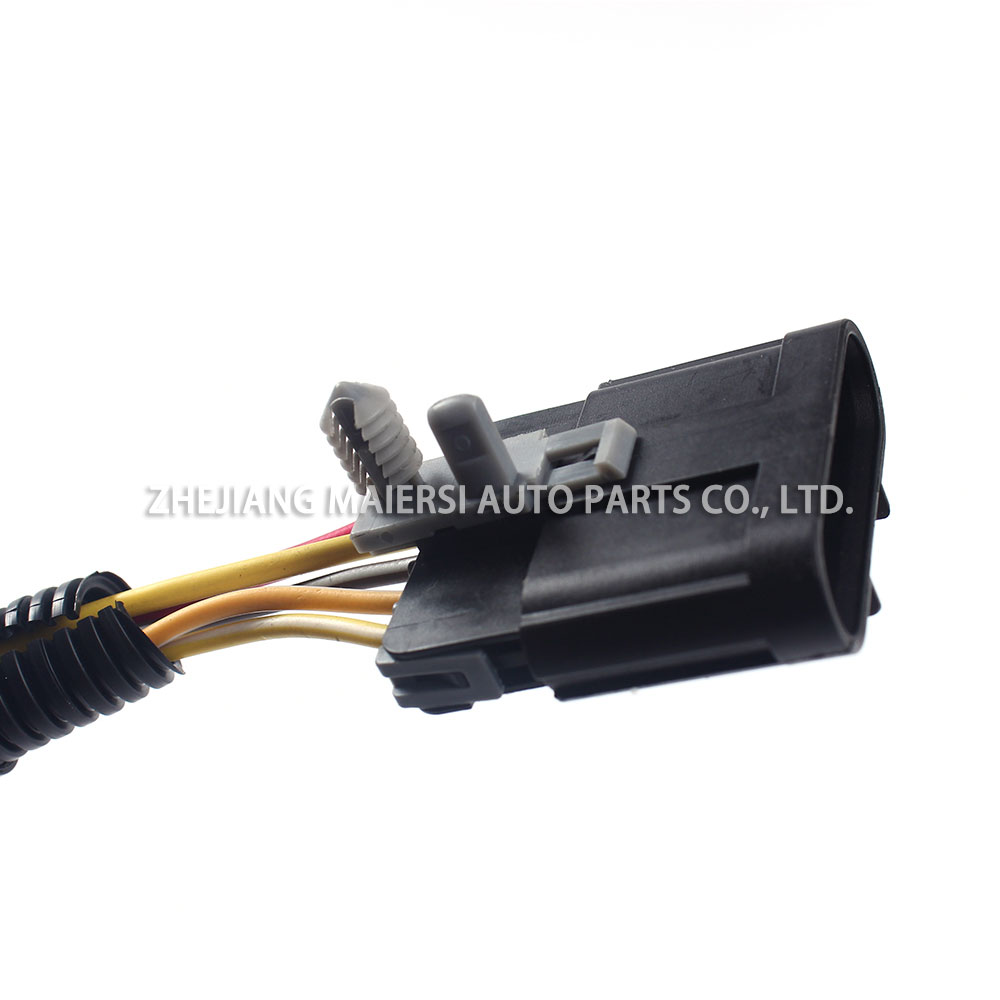

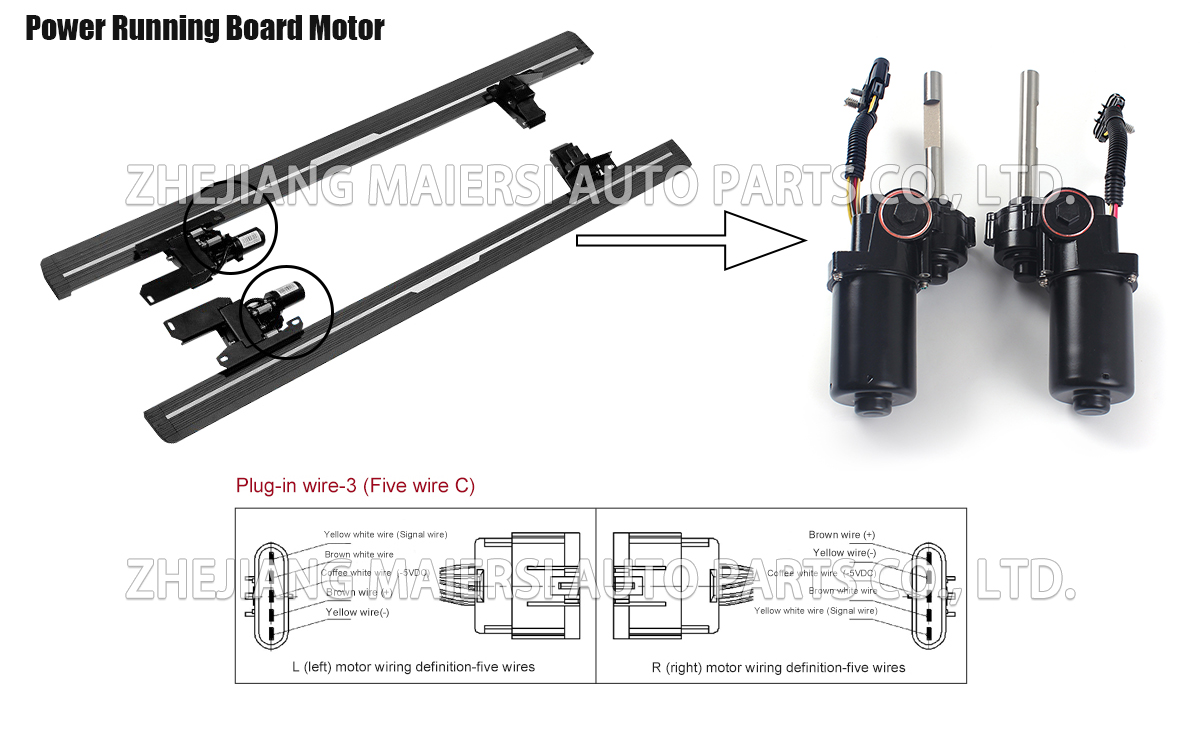

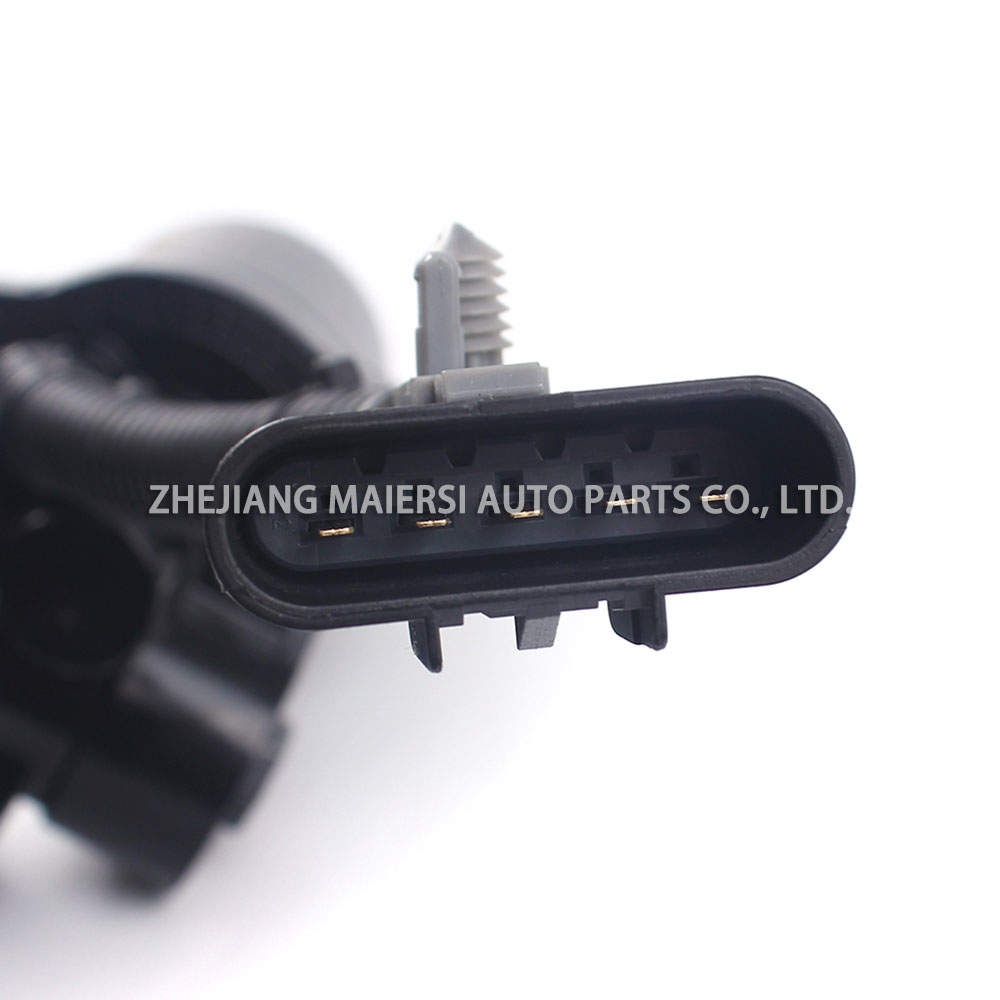

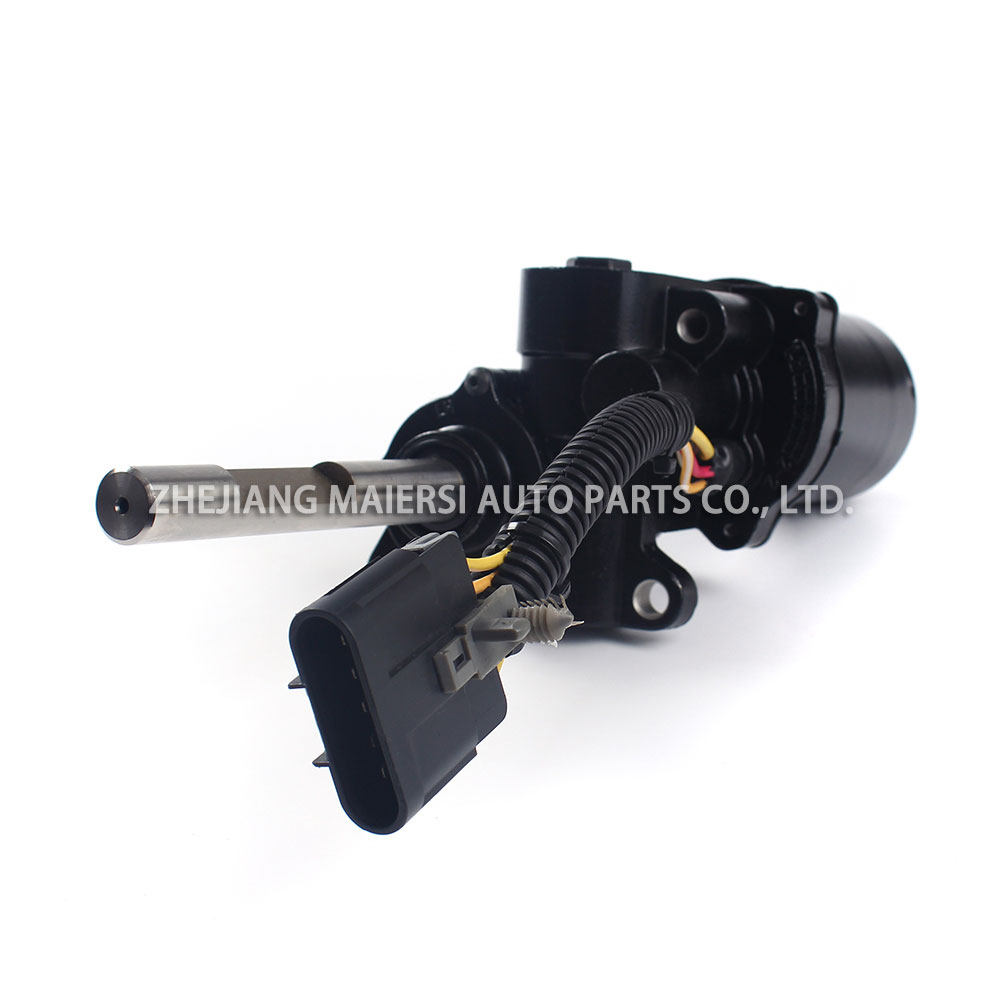

| Plug style | Five pin plug |
| Rated voltage | DC 12V |
| No-load current | ≤ 2.5A |
| Rated power | 80W |
| Frequency | 50/60Hz |
| Noise | ≤ 60 dB |
| Load 5Nm | Speed 14 ±1 RPM; Current ≤ 5.0A |
| Load 20Nm | Speed 8 ±1 RPM; Current ≤ 12A |
| Output shaft speed | 15 RPM ± 1RPM |
| Braking torque | Torque ≥ 50 N.m; Current≤28A |

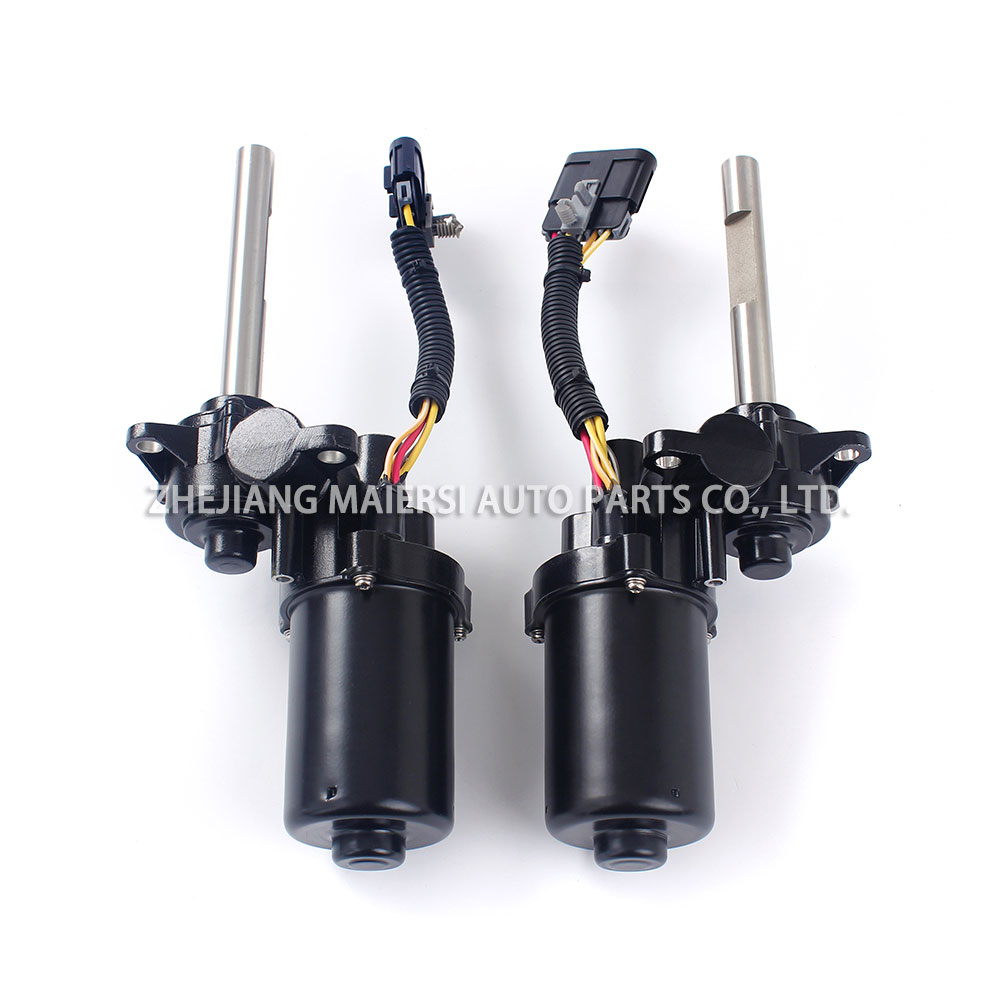

| Output shaft steering | The motor on the left：counterclockwise; The motor on the right：clockwise |
| Insulation class | F class |
| Protection grade | IP67 |
How to Replace Power Side Step Motor:
1.Disconnect the motor loom plug.
2.Undo the four nuts and two bolts holding the two brackets.
3.Remove the running board from the vehicle.
4.Remove the plastic end shield.
5.Remove the motor end cover - screws. Take care not to lose any shims.
6.Spin the armature until it stops. Then you can see the wedge bolt.
7.Remove the wedge bolt.
8.Knock out aluminium wedge from the back.
9.Note the orientation of the wedge, for re-assembly. Also note the position of the boards.
10.Stand on the board and work the hinges back and forth, whilst liberally spaying all moving parts with penetrating lubricant, until moving freely.
11.If step 10 improves the operation of the hinges, possibly your motor is OK, and you can re-assemble your board and re-test.
Otherwise, you need to replace the motor.
12.Re-assembly is simply the above procedure in reverse. Ensure that the running board is in the same position as when you started.
Otherwise you may end up with the boards working in reverse - i.e. retracting instead of deploying, and deploying instead of retracting.
